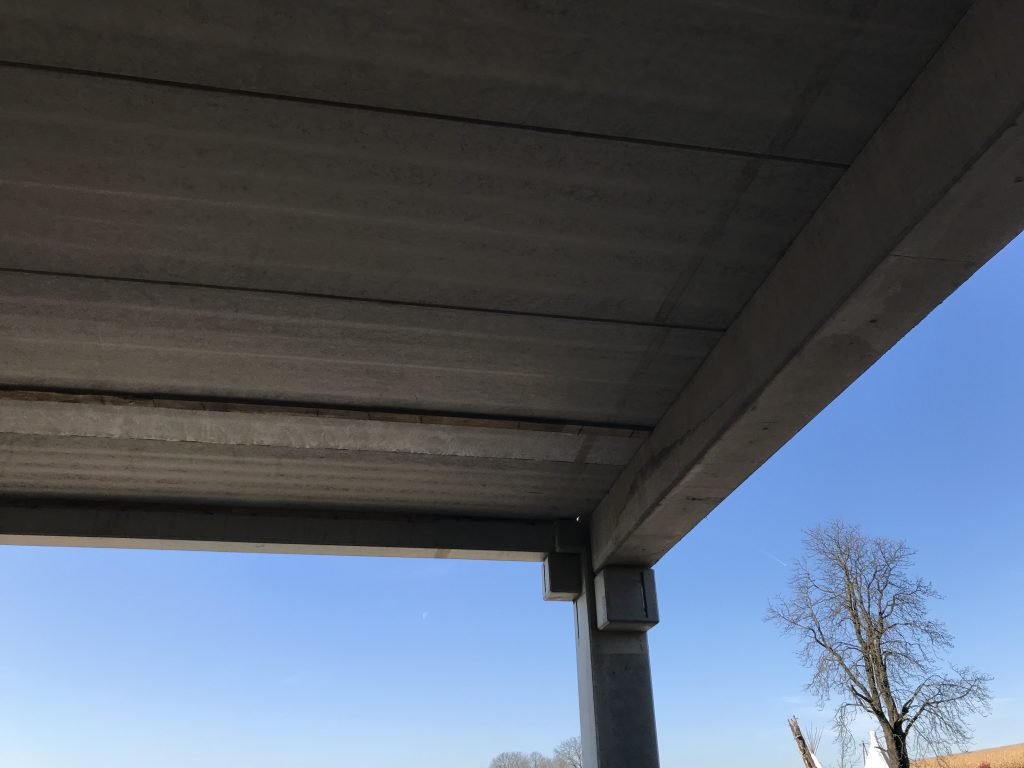

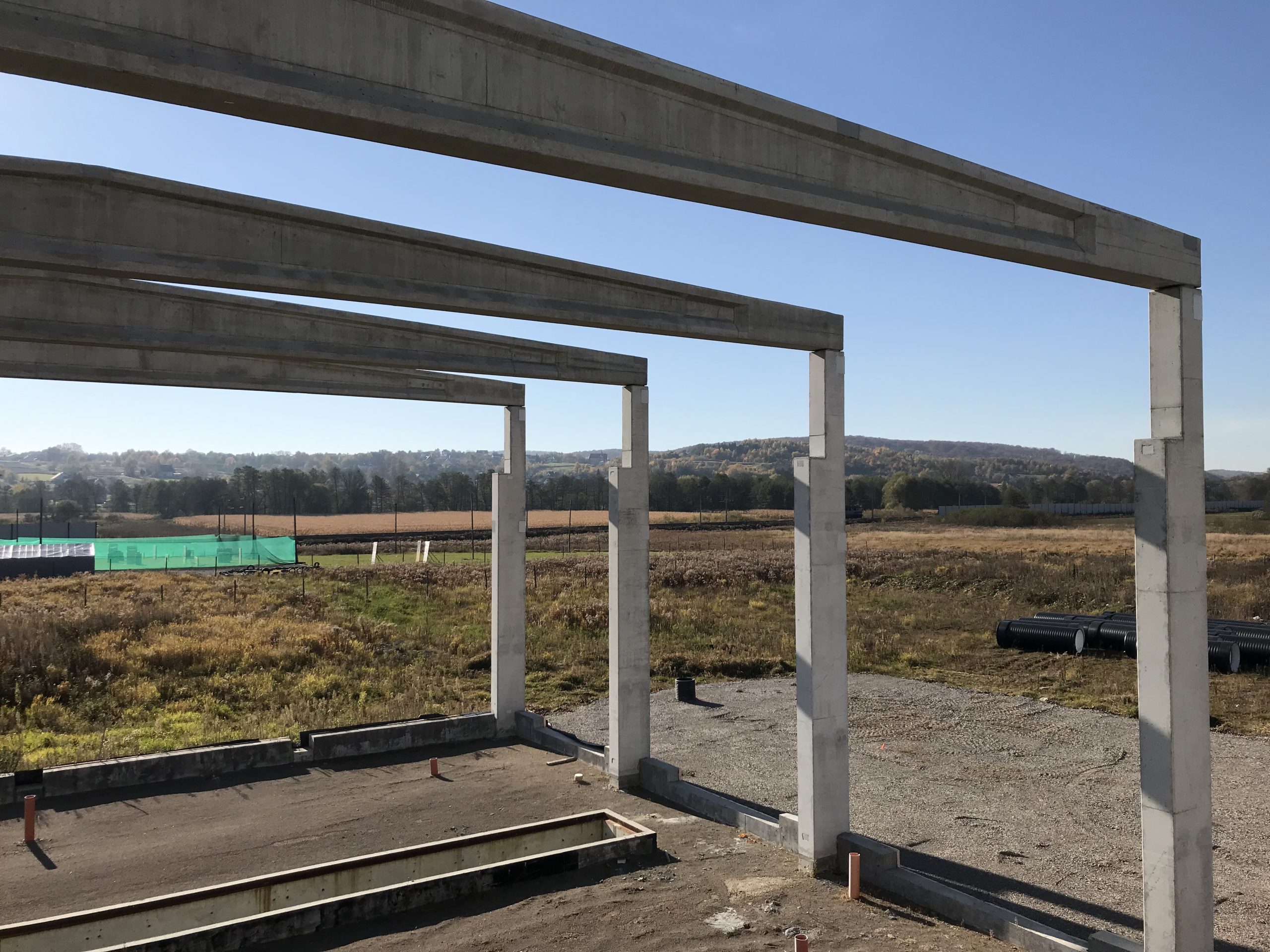

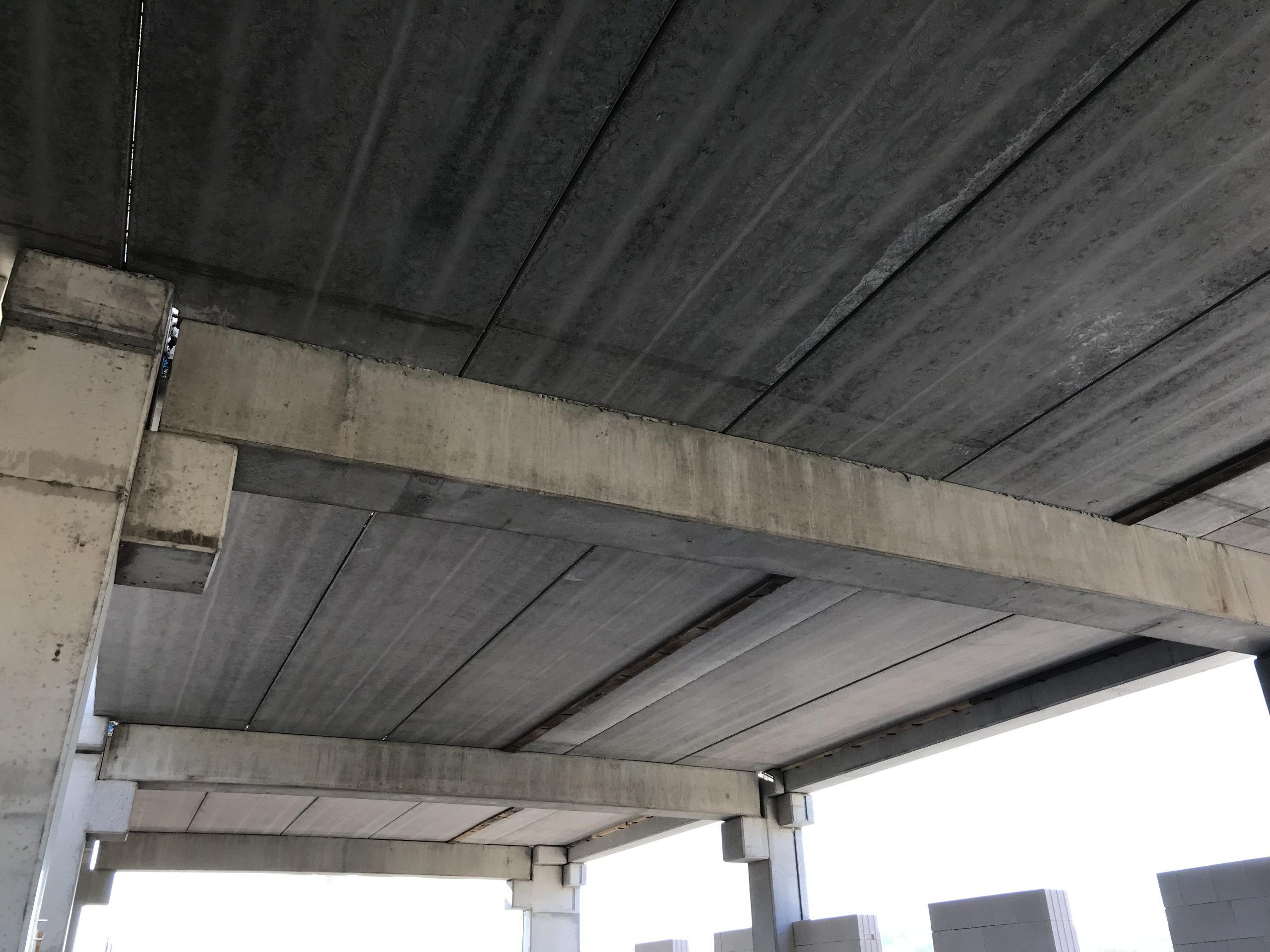

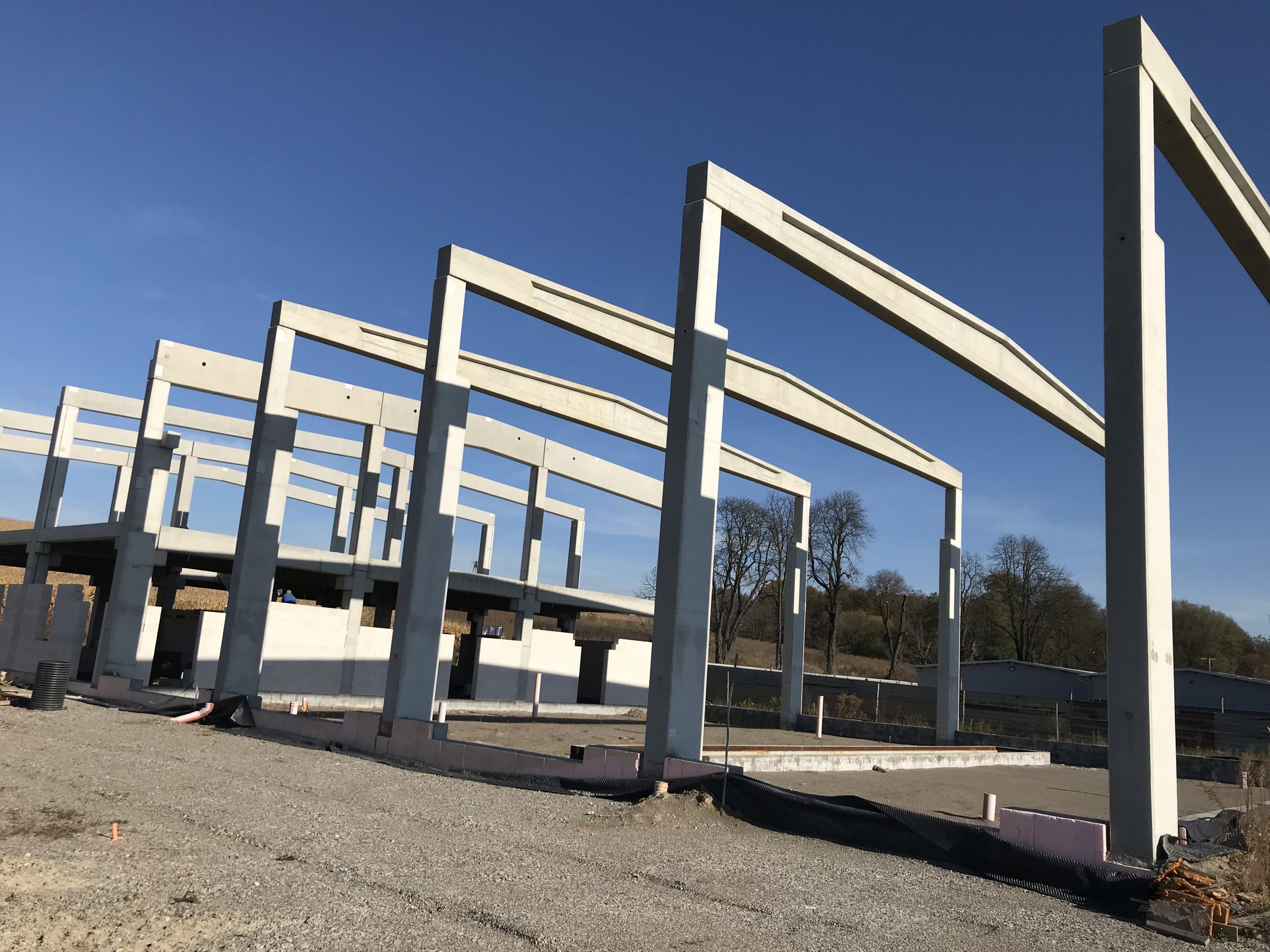

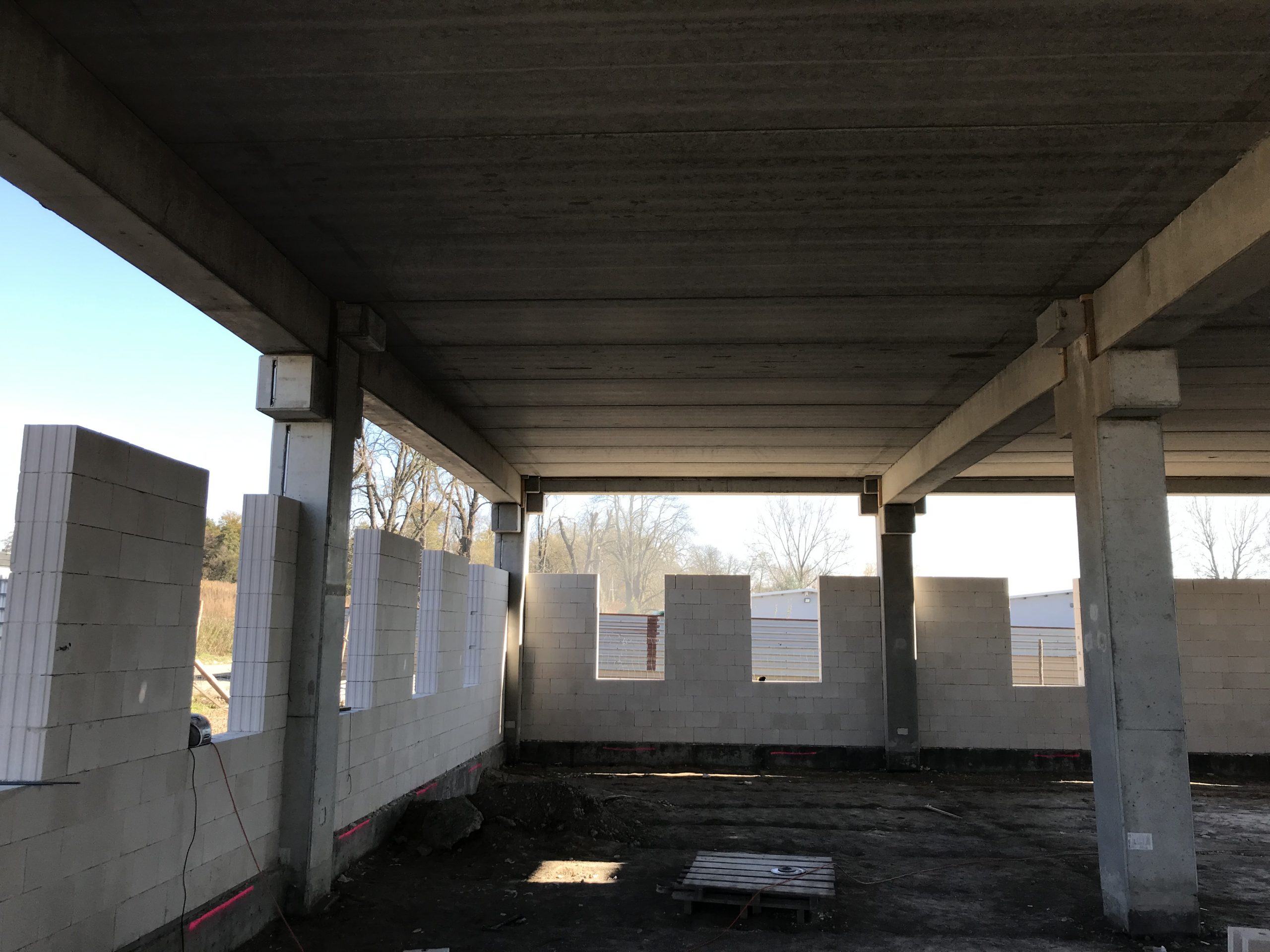

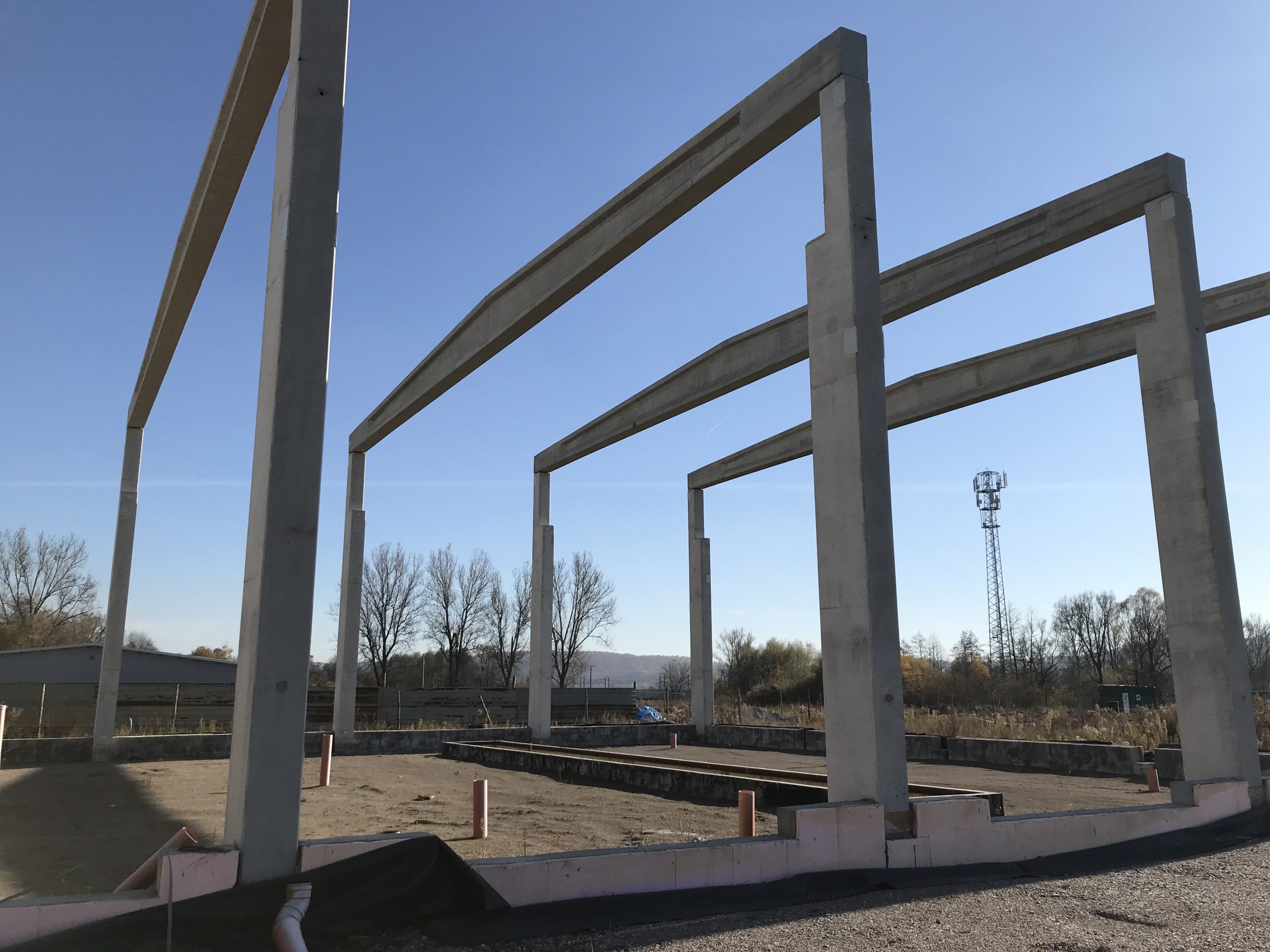

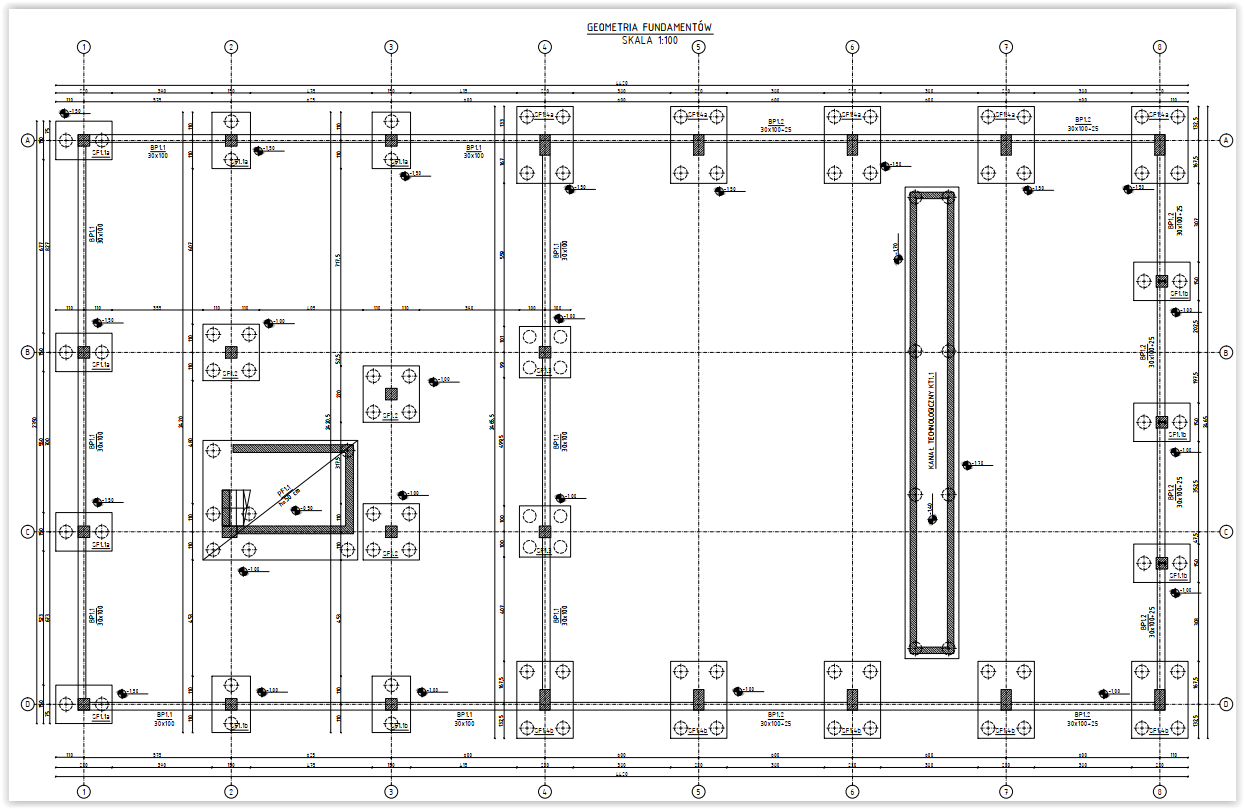

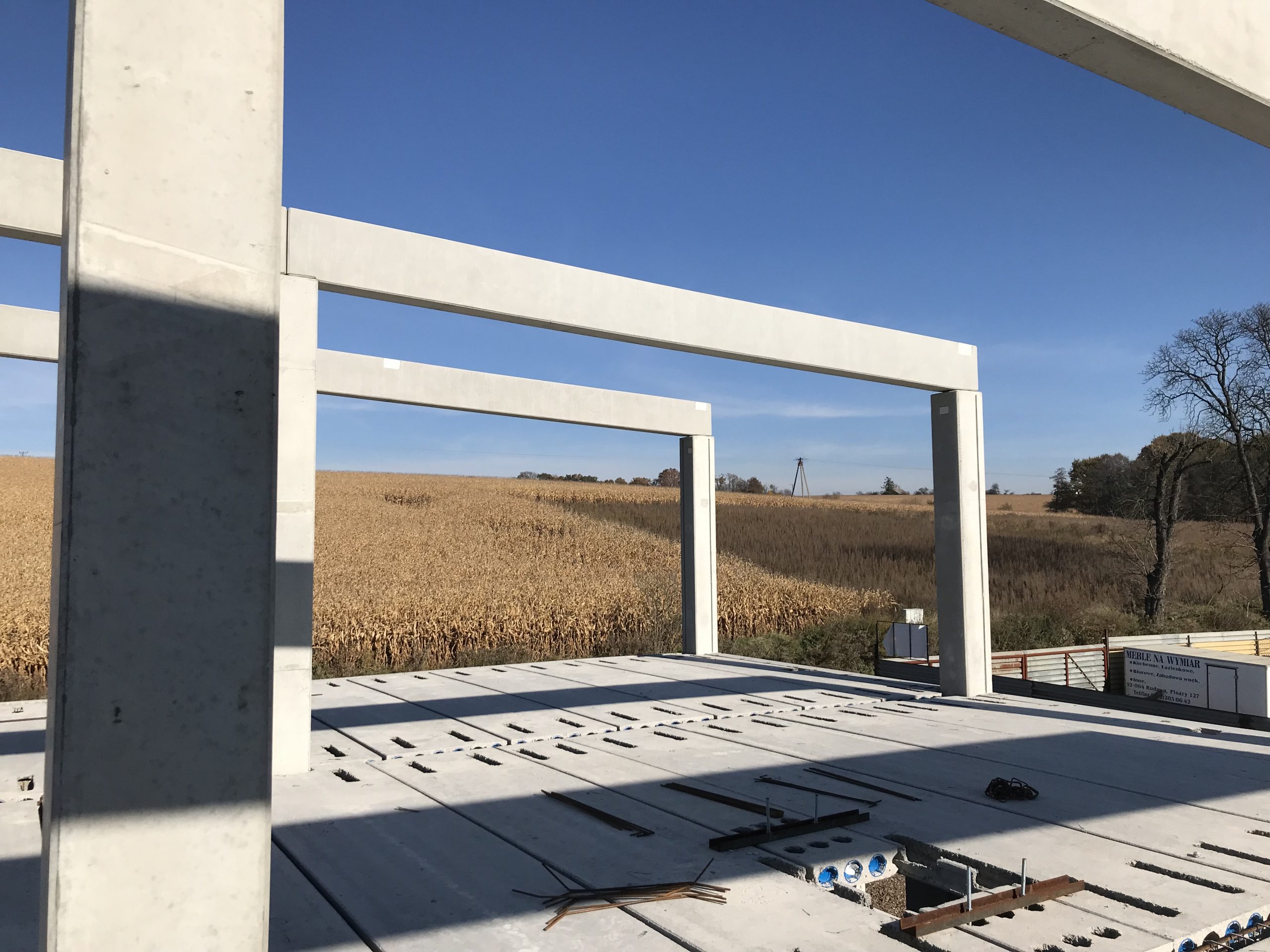

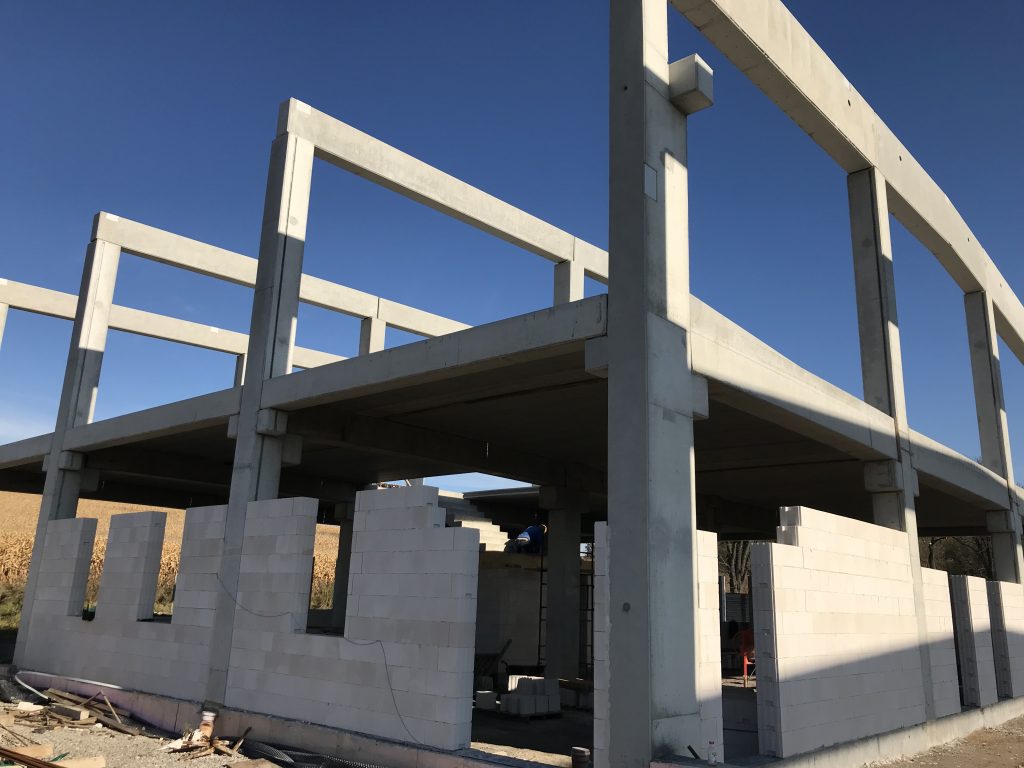

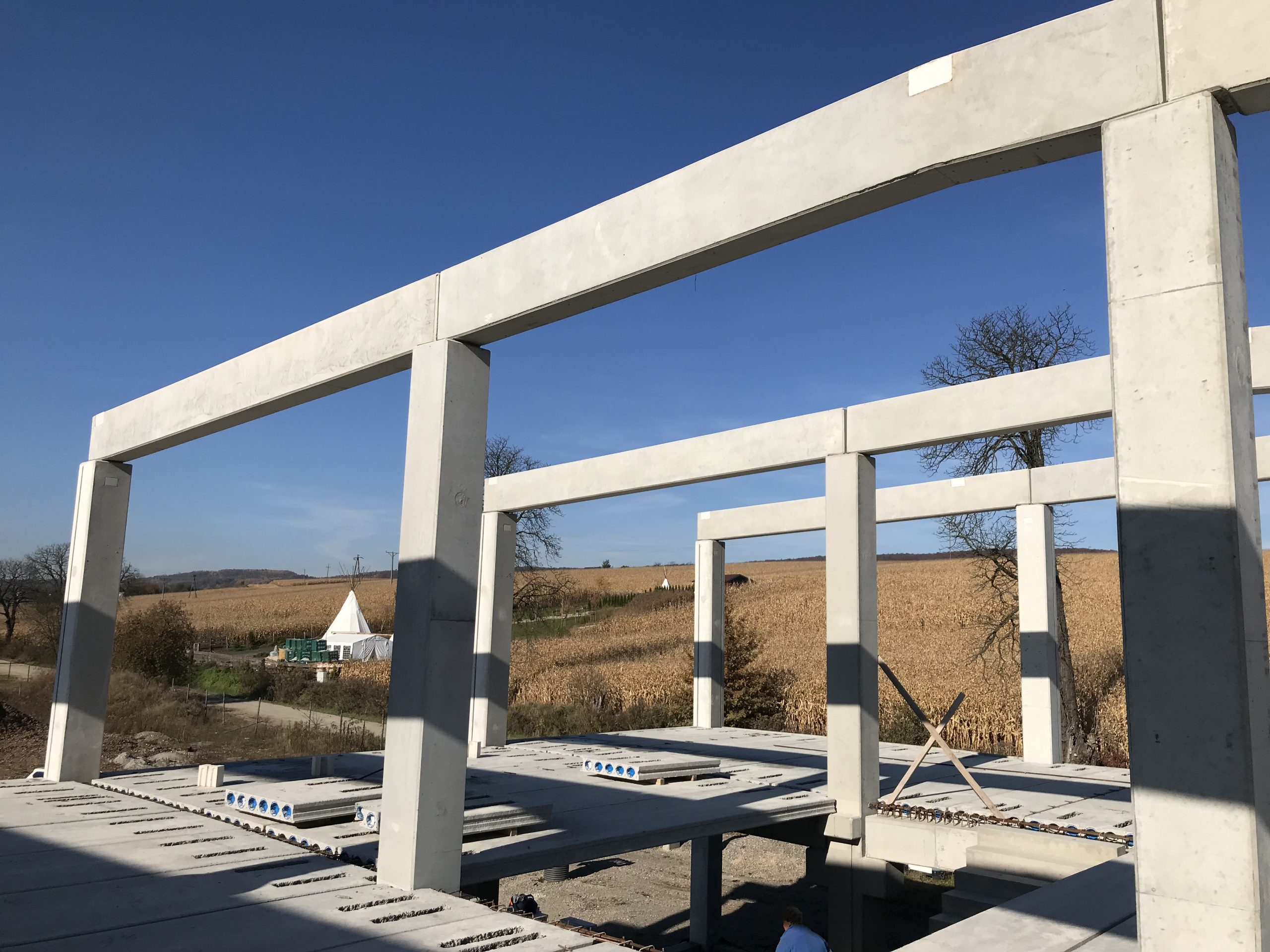

Przedmiotem naszych prac było opracowanie dokumentacji konstrukcyjnej w zakresie projektu budowlanego oraz wykonawczego fundamentów i elementów stalowych no potrzeby budowy budynku warsztatu z częścią biurową i magazynową w Pisarach pod Krakowem. Część nadziemną budynku tj. główną konstrukcję hali przyjęto jako ramowy, żelbetowy wykonany z prefabrykowanych elementów firmy Betard. Hala posiada jedną, a częściowo dwie kondygnacje nadziemne. Częściowo to obiekt o funkcji administracyjno – biurowej, w pozostałej strefie zaś o funkcji warsztatu. Posadowienie projektowanej hali zaprojektowano jako pośrednie w związku z występującymi w podłożu gruntami słabonośnymi oraz nienośnymi. W celu przeniesienia obciążeń z nowoprojektowanych słupów na podłoże gruntowe zaprojektowano żelbetowe stopy fundamentowe wsparte na układzie pali typu CFA. Stopy fundamentowe połączono żelbetową belką podwalinową w celu stężenia oraz przeniesienia momentów zginających. Lokalnie belka podwalinowa stanowi konstrukcję wsporczą dla słupów obudowy. Przewidziano wykonanie 97 sztuk pali o średnicy D=500 mm i długości ok. 7,5 m poniżej poziomu spodu fundamentów. Ponadto w ścianach części warsztatowej zaprojektowano słupki i belki drugorzędne z elementów stalowych pod oparcie płyt warstwowych.
